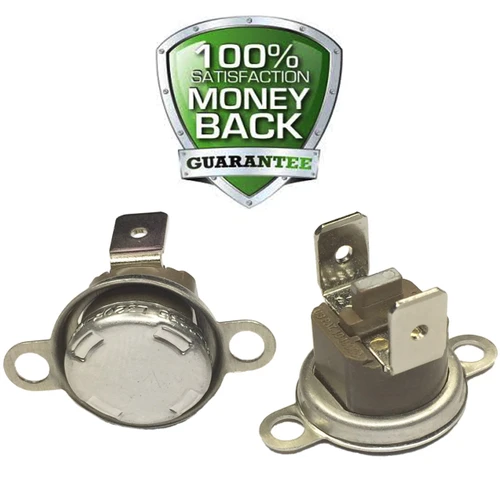

1NT08L-2235 L320F-MR

Fixed Temperature Thermostat

MAX TEMP 204C/400F

ELECTRICAL RATING 240Vac - 25Amps

MAX TEMP 204C

ELECTRICAL RATING 240 Vac 16(5)A 400 Vac 4(1)A

This thermostat is used in a variety of applications.

This device helps ensure the safe operation of many types of

 products and home appliances.

 thermostats operate in coffee and tea makers, microwave ovens, sandwich makers, rice cookers, hair dryers, fan heaters, vacuum cleaners and gas furnaces.

Thermostat Handling Tips

1. Exposed disc devices should be kept free of dust and particles. The face of the disc should never be snapped.

2. Mounting screws and drivers for use with smaller integral cups and flanges should be sized to provide adequate clearance to the thermostat body.

3. The installation force applied to the cup face should not exceed 66.7N (15 lbs.)

4. The maximum reset force on the manual reset and trip free button is 22.2N (5 lbs.).
