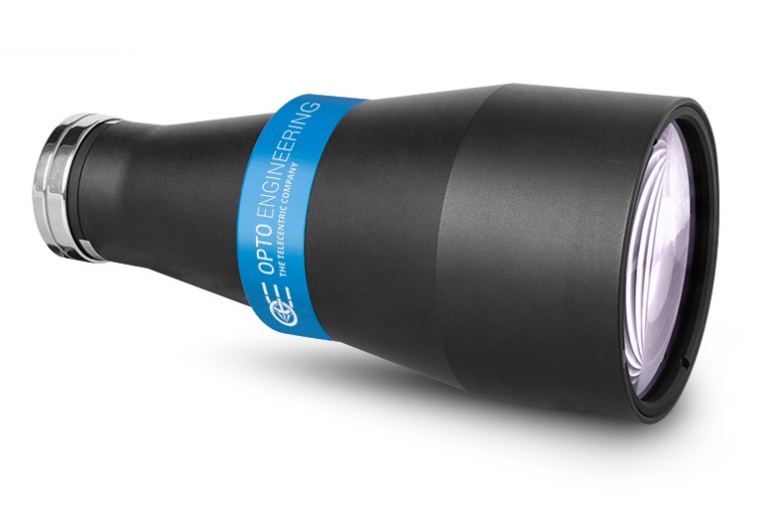

TC13048 OP-TO ENG. Bi-telecentric lens for 1/3″ sensors, magnification 0.098 x, C-mount

KEY ADVANTAGES
High telecentricity for thick object imaging.
Nearly zero distortion for accurate measurements.
Excellent resolution for high resolution cameras.
Simple and robust design for industrial environments.
Easy filter insertion.

SPECIFICATIONS
Optical specifications
Magnification 0.098
Image circle (mm) 6.0
Max sensor size 1/3"
Working distance2
(mm) 132.5
wƒ/N
3
8
Telecentricity typical (max)4
(°) < 0.08 (0.10)
Distortion typical (max)5
(%) < 0.06 (0.10)
Field depth6
(mm) 43.1
Resolution (max)7
(µm) 52
Mechanical specifications
Mount C
Phase adjustment8 No
Length9
(mm) 167.9
Front diameter (mm) 75.0
Mass (g) 622

TC series bi-telecentric lenses represent the key component
of any measurement system powered by machine vision: these
lenses can truly take advantage of high-resolution sensors such
as 2/3", acquiring images with exceptional fidelity and precision.

FIELD OF VIEW
Sensors1
(mm x mm)
1/3” (4.80 x 3.60 mm x mm) 48.98 x 36.73
1/2.5” (5.70 x 4.28 mm x mm) ⊘ = 43.67
1/2” (6.40 x 4.80 mm x mm) ⊘ = 48.98
1/1.8” (7.13 x 5.33 mm x mm) ⊘ = 54.39
2/3” (8.50 x 7.09 mm x mm) ⊘ = 61.22
