U349QLN01.0 AUO Panox Display AMS350MU04 3.5" 1440(RGB)×1600 615PPI Active area 59.4(W)×66(H) mm Outline Dim. 62.4(H)×73.2(V)×0.81(D) mm Luminance 165 cd/m² (Typ.) View Direction: Symmetry
U349QLN01.0 AUO Panox Display AMS350MU04 3.5" 1440(RGB)×1600 615PPI Active area 59.4(W)×66(H) mm Outline Dim. 62.4(H)×73.2(V)×0.81(D) mm Luminance 165 cd/m² (Typ.) View Direction: Symmetry U349QLN01.0 AUO Panox Display AMS350MU04 3.5" 1440(RGB)×1600 615PPI Active area 59.4(W)×66(H) mm Outline Dim. 62.4(H)×73.2(V)×0.81(D) mm Luminance 165 cd/m² (Typ.) View Direction: Symmetry

U349QLN01.0 AUO Panox Display (AMS350MU04) 3.5" 1440(RGB)×1600 615PPI Active area 59.4(W)×66(H) mm Outline Dim. 62.4(H)×73.2(V)×0.81(D) mm Luminance 165 cd/m² (Typ.) View Direction: Symmetry

AVLIS-CO
$14.99
SKU U349QLN01.0
Height 6.00 (in)
Width 4.00 (in)
Depth 2.00 (in)
Availability In Stock
Stock 3158
JS JS
Wishlist

Create Wishlist

Brand AUO Panox Display

Model P/N: U349QLN01.0  (AMS350MU04)

Diagonal Size: 3.5"

Panel Type: AM-OLED, OLED , Full Module

Resolution: 1440(RGB)×1600  615PPI

Pixel Format: RGB Vertical Stripe

Active Area: 59.4(W)×66(H) mm

Bezel Opening: -

  • Outline Dim. 62.4(H)×73.2(V)×0.81(D) mm
  • Luminance 165 cd/m² (Typ.)
  • Contrast Ratio 20000:1 (Min.) (TM)
  • View Direction: Symmetry
  • Viewing Angle 70/70/70/70 (Min.)(CR≥480)
  • Support Color16.7M
  • Light Source self

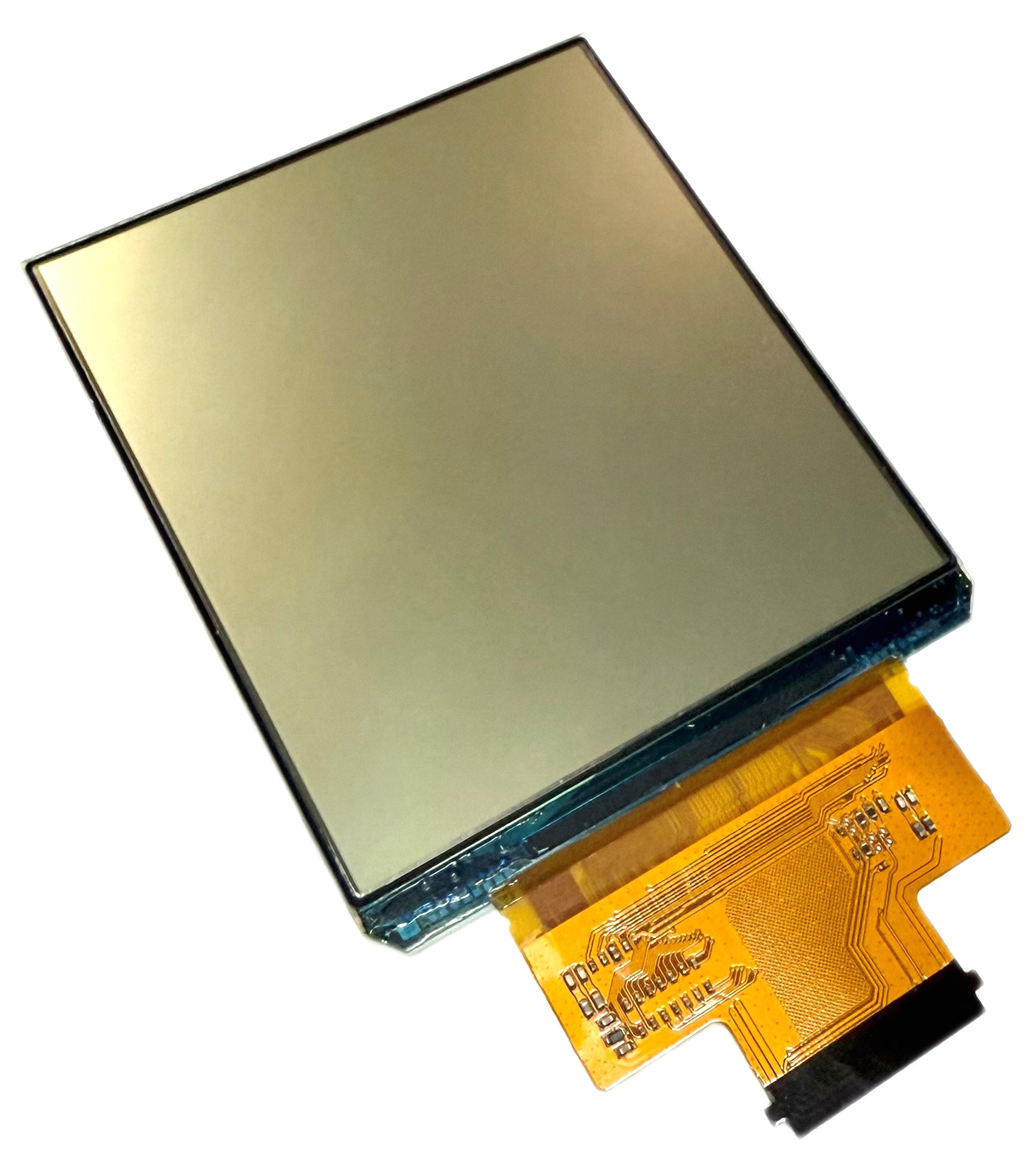

  • U349QLN01.0 (Alias: 95.03U01.000) is a 3.5 inch diagonal AM-OLED display panel product, it self emiting, without touch screen. It features an operating temperature range of -40 ~ 85°C , a storage temperature range of -55 ~ 125°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: DCI-P3, sRGB, Landscape / Portrait, Wide Temperature . Based on its features,we recommend that this model be applied to HMD VR AR etc.
