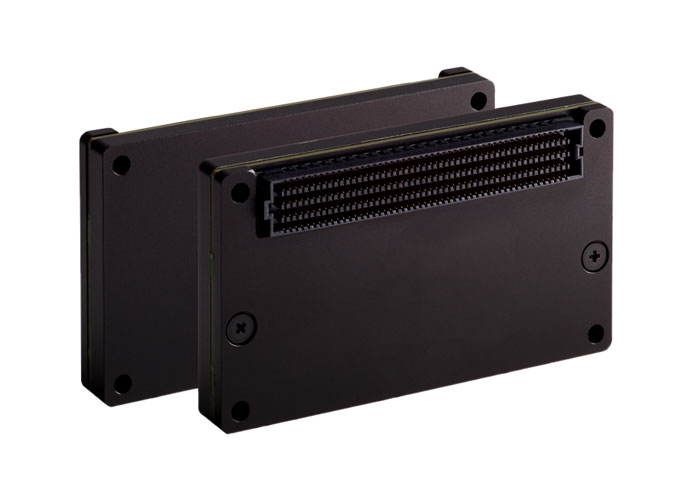

NV ID IA 900-83489-0080-000 Je tson TX2 4GB Module System on Modules - SOM

TECHNICAL SPECIFICATIONS
GPU 256-core Pasca   GPU
CPU Dual-core NV DIA Denver 2
Quad-core ARM A57 complex
Memory 4 GB 128 Bit LPDDR4 | 25.6 GB/s
Storage 16 GB eMMC 5.1
Video Encode 4Kp60| 3x 4Kp30| 4x 1080p60| 8x 1080p30
(H.265)
Video Decode 2x 4Kp60| 4x 4Kp30| 7x 1080p60| 14x
1080p30 (H.264/H.265)
CSI 12 (3x4 or 6x2) lanes MIPI CSI-2 D-PHY 1.1
Connectivity 10 / 100 / 1000 BASE-T Gigabit Ethernet
Display HDMI 2.0, eDP 1.4, DP 1.2
PCIe 1x4+1x1 OR 2x1+1x2 PCIe Gen2
USB 3x USB 3.0, 3x USB 2.0
Others I2C, I2S, SPI, UART, SD/SDIO, SATA, GPIO
Mechanical 87 mm x 50 mm 400-pin connector
